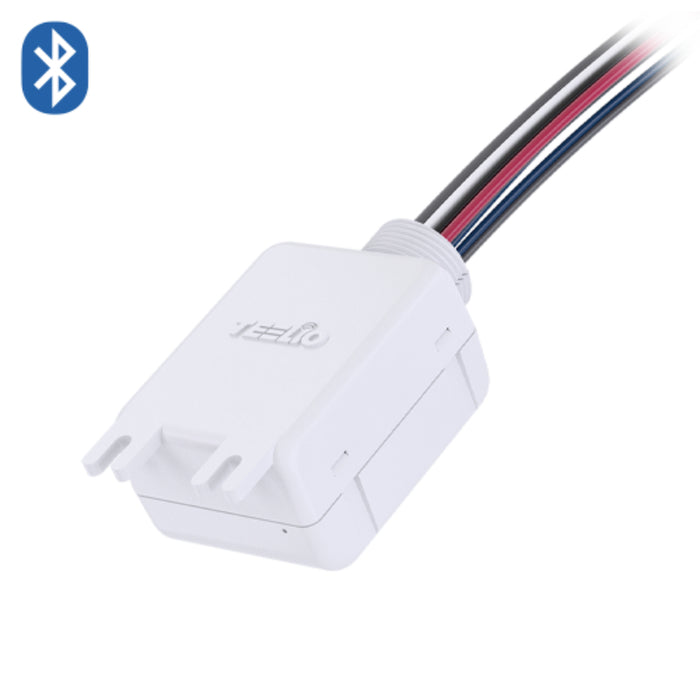

PT-BTC-6 Bluetooth Fixture Controller
SKU PT-BTC-6
Original price
$52.20
-
Original price
$52.20
Original price
$52.20
$52.20
-
$52.20
Current price
$52.20
Availability:
in stock, ready to be shipped
The 6A Bluetooth Fixture Controller seamlessly converts luminaires to wireless control for integration with the TEELIO Bluetooth system. Supporting 6 Amps, it can connect multiple fixtures in new construction applications. The PT-BTC-6 also functions as a power pack, providing DC12V auxiliary power to the PT-A-EMS-MW for sensor required applications.
Compatible Fixtures (Sold Separately):
- PT-ALP-2F-20-5C4P
- PT-ALP-4F-40-5C4P
- PT-ALP-8F-80-5C4P
- PT-CPY-S-80-3C5P
- PT-CPY-R-80-3C5P
- PT-WPH-75-3CP-4
- PT-WPH-120-3CP-4
- PT-WPF-60-3CPB
- PT-WPF-100-3CPB
- PT-WPH-60-3CPB
- PT-WPH-120-3CPB
- PT-FL-300-3CPB
Features
- Input Voltage: 120-277V
- Integrated 6A relay
- Offers 12V, 200mA output power to sensors
- Attaches with standard 1/2” knockout
- Provides 0-10VDC dimmable single or dual channel output

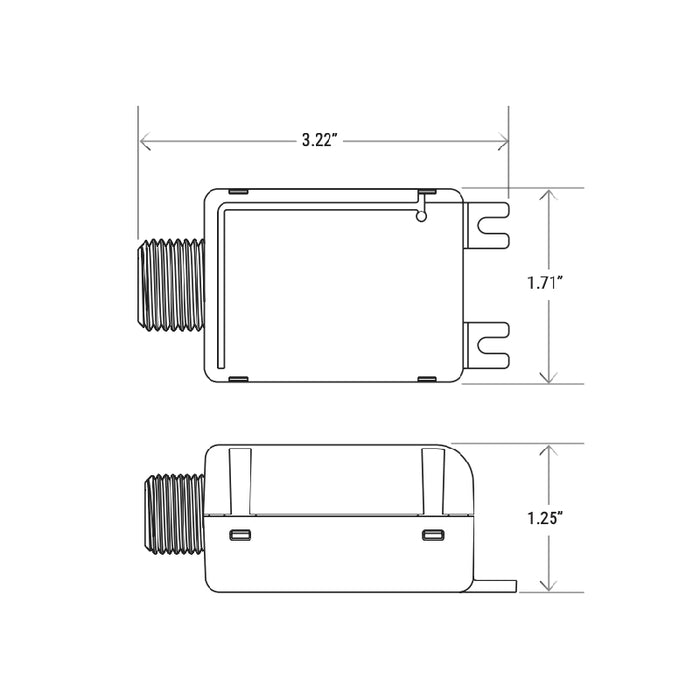

Dimensions
- Length: 3.22"
- Width: 1.71"
- Height: 1.25"
Warranty
- 5-Year Limited Warranty
