PT-ALP 4ft 20W/24W/32W/40W LED Direct/Indirect Architectural Linear Pendant with 5CCT and Wattage Selector, 120-277V
SKU PT-ALP-4F-40-5C4P
Original price
$116.40
-
Original price
$116.40
Original price
$116.40
$116.40
-
$116.40
Current price
$116.40
Availability:
In stock

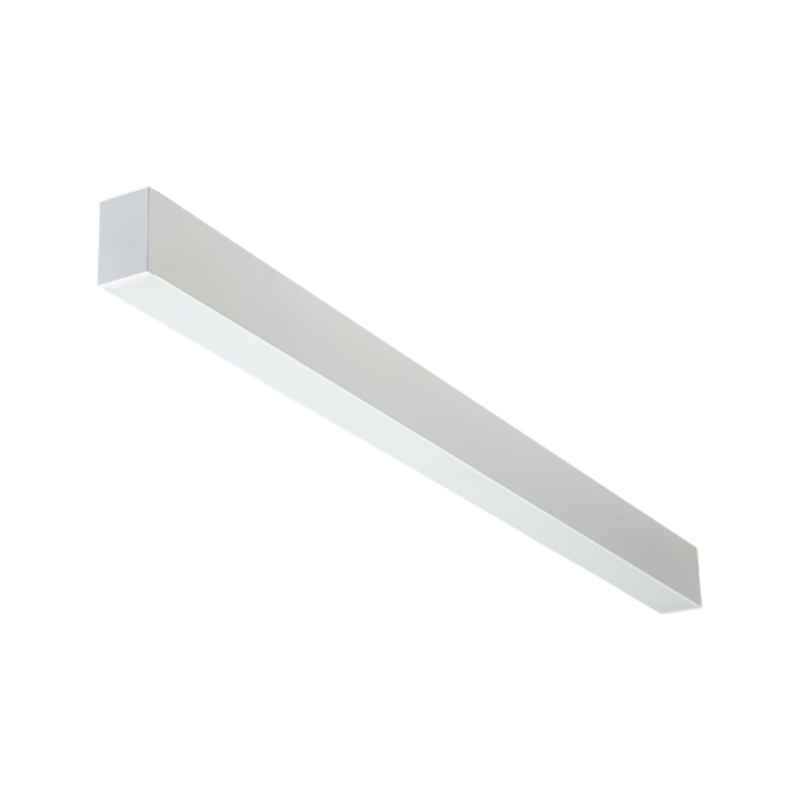

The Portor PT-ALP Series linear architectural luminaire is designed to deliver high-performance illumination in a compact and modern form factor for commercial and architectural environments. Built with installer efficiency in mind, the fixture features a tool-less quick-fit connection system that simplifies installation while maintaining a clean, continuous appearance.
Features
- Length: 4-ft
- Construction: Steel housing, frosted polycarbonate diffuser
- Wattage: 20W / 24W / 32W / 40W Selectable
- Voltage: 120V-277V
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
- Delivered Lumens: up to 5458
- CRI: 80+
-
Dimmable: 0-10V Dimming
-
Selectable direct/indirect light distribution provides enhanced lighting flexibility
-
Slim architectural profile with integrated quick-connect design for seamless continuous row installation
- Tool-free quick-connect system simplifies installation and continuous row alignment
- Mounting accessories allow suspended pendant mount, surface mount, wall mount, recessed mount, and T-grid applications (Mounting accessories not included)

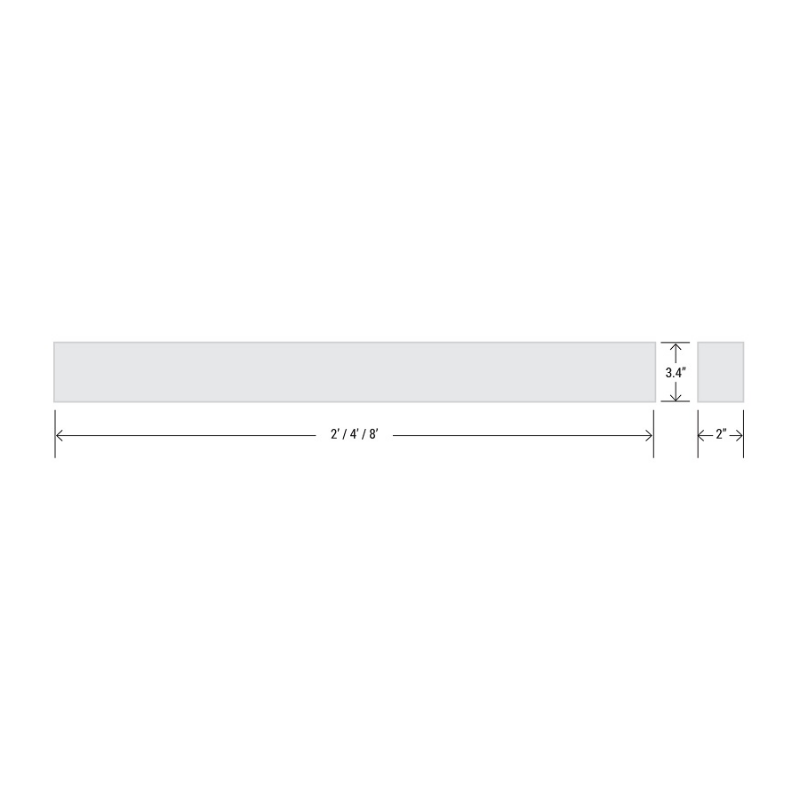

Dimension
- Length: 4-ft
- Width: 2"
- Height: 3.4"
Estimated Life
- L70 > 100,000 hours
Warranty
- 5-year limited warranty
Documents
Accessories (Sold Separately):
- Bluetooth 4-pin Sensor: PT-MS-BT (MSK-ALP Motion Sensor kit required)
- Bluetooth Fixture Controller: PT-BTC-6
- Step-Down Auto-Transformer: PT-SDT-325
Labels and Listings
- UL Listed for damp locations. DLC Listed. FCC compliant.
