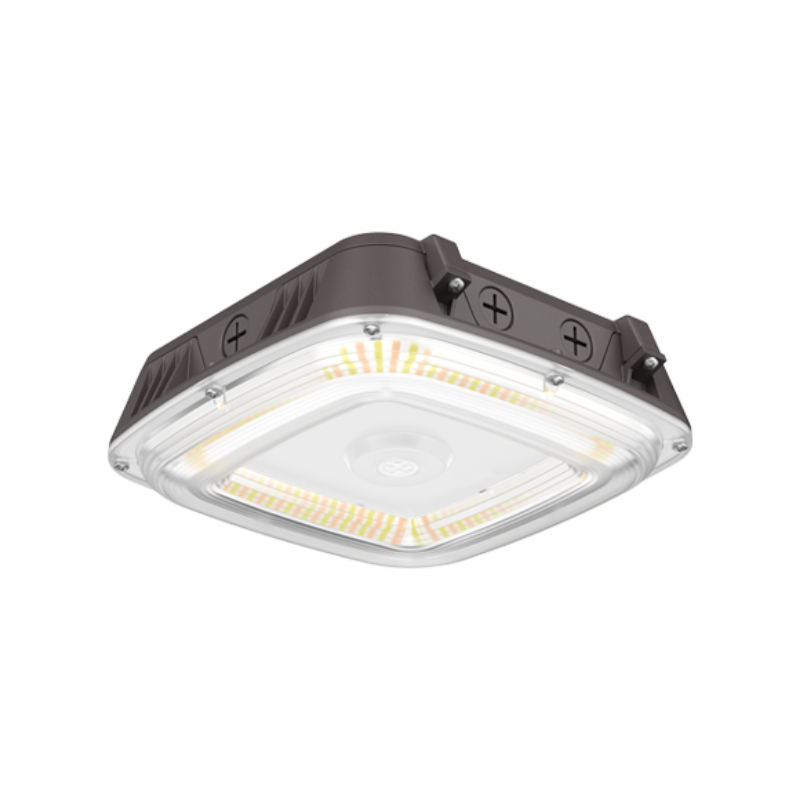

PT-CPY-S 20W/40W/60W/70W/80W LED Square Canopy Luminaire with Wattage and 3CCT Selector, 120-277V
SKU PT-CPY-S-80-3C5P
Original price
$94.61
-
Original price
$94.61
Original price
$94.61
$94.61
-
$94.61
Current price
$94.61
Availability:
in stock, ready to be shipped
Portor’s PT-CPY-S-80-3C5P Canopy Light is a versatile and energy-efficient fixture ideal for covered parking areas, garages, walkways, and building entrances.
Features
- Finish: Bronze
- Construction: Die-cast Aluminum housing, polycarbonate lens
- Wattage: 20W / 40W / 60W / 70W / 80W Selectable
- Voltage: 120V-277V
- Color Temperature: 3000K / 4000K / 5000K Selectable
- Delivered Lumens: up to 12348
- CRI: 80
-
Dimmable: 0-10V dimming, 5-100% smooth dimming
- Must use 0-10V dimming wire. Not compatible with line voltage dimming.
- Designed for fast installation with a flip-open cover that allows easy access during mounting
- Fixture can be mounted directly to a recessed junction box or conduit entry point
- Supports surface mount or pendant mount configurations for flexible installation
- Fixture features an Integrated Photocell
- IP65 rated

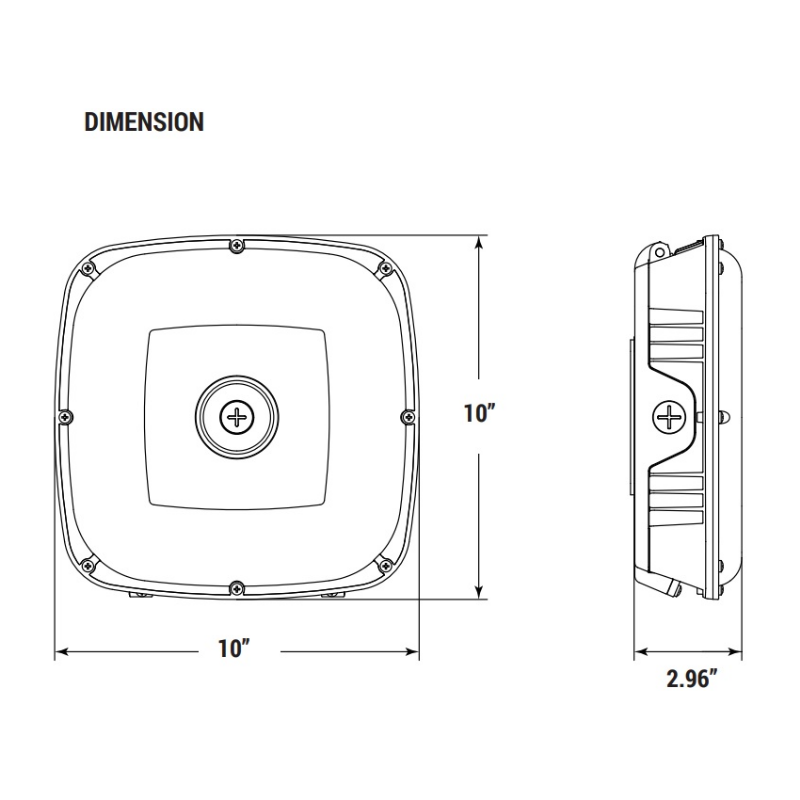

Dimension
- Length: 10"
- Width: 10"
- Height: 2.96"
Estimated Life
- L70 50,000 hours
Warranty
- 5-year limited warranty
Documents
Accessories (Sold Separately):
- Dimmable Motion Sensor: PT-UNI-35-PR
- Remote Control: MSS-RC-100
- Bluetooth Fixture Controller: PT-BTC-6
Labels and Listings
- DLC, UL Listed
