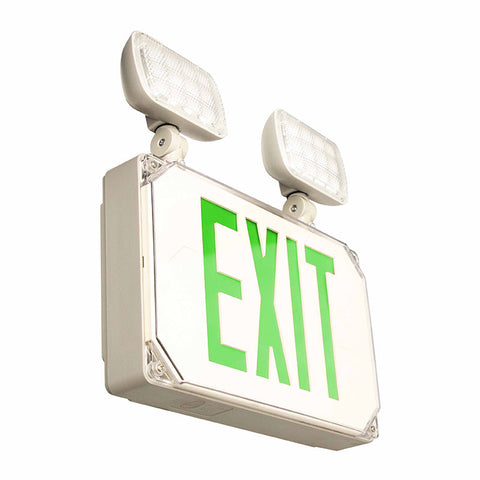

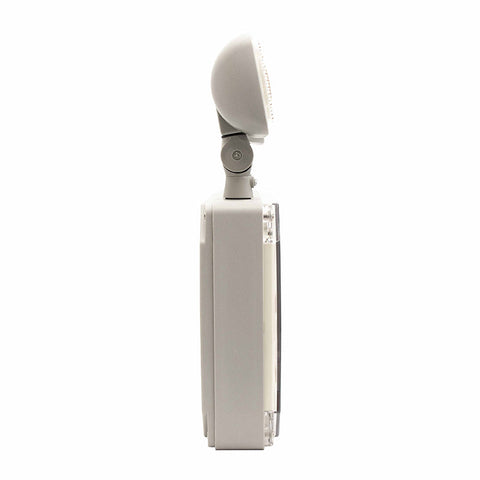

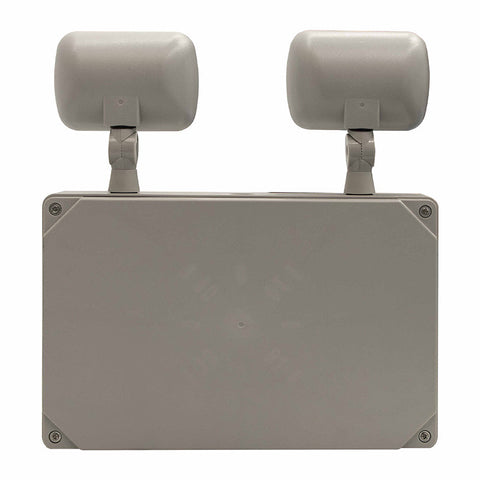

Westgate XT-CLWP Wet Location Combo LED Exit & Emergency Sign
Westgate | SKU#
Exit signs shall be provided at every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations and intervals as are necessary to provide the occupants with knowledge of the various means of egress available.
Features
- Face?Color: White
- Number of Face: Universal Single/Double
- Letter Color:?Green. Red
-
Light Head Wattage: 2.4W Per head
- Sign Wattage: 3.46W
- Input Power: 2.90-3.79W
- Voltage: 120/277V
- Color Temperature: 6132K
- Total Lumens: 8 (AC)/ 272 (DC)
- Mounting:?Wall Mount, Ceiling Mount
- Internal Solid-State Transfer Switch Automatically Connects the Internal Battery to LED Board for Minimum 90-minute Emergency Illumination?

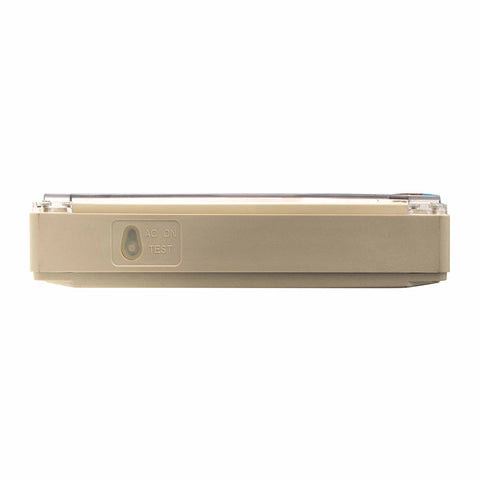

- Charge Rate/Power ?œON??LED Indicator Light and Push-to-Test Switch for mandated Code Compliance Testing

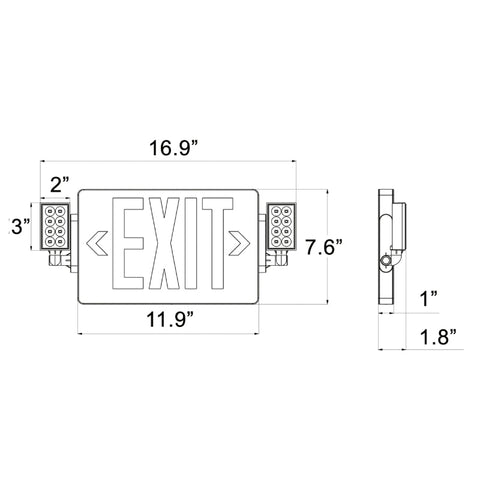

Dimensions
- Width: 16.9"
- Height: 7.6"
- Depth: 1.8"
- Product Weight:?5.33 lbs
Warranty
- 3-year limited warranty
