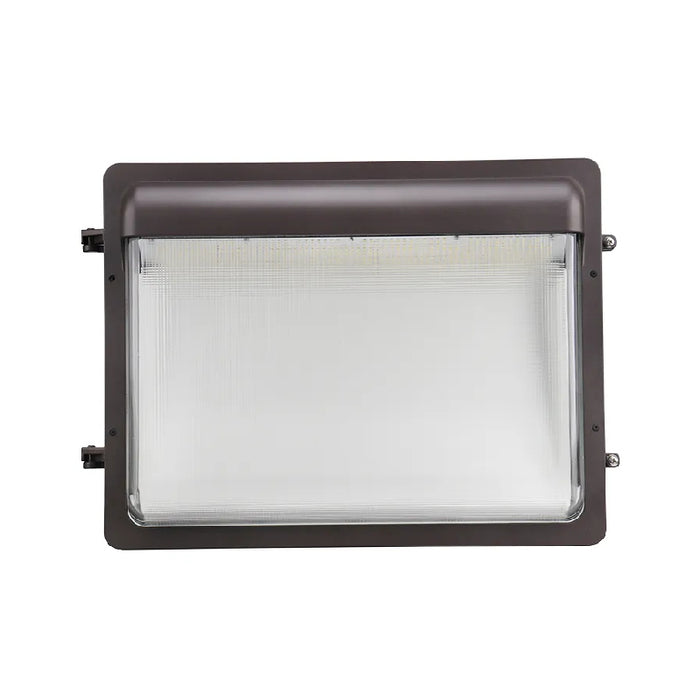

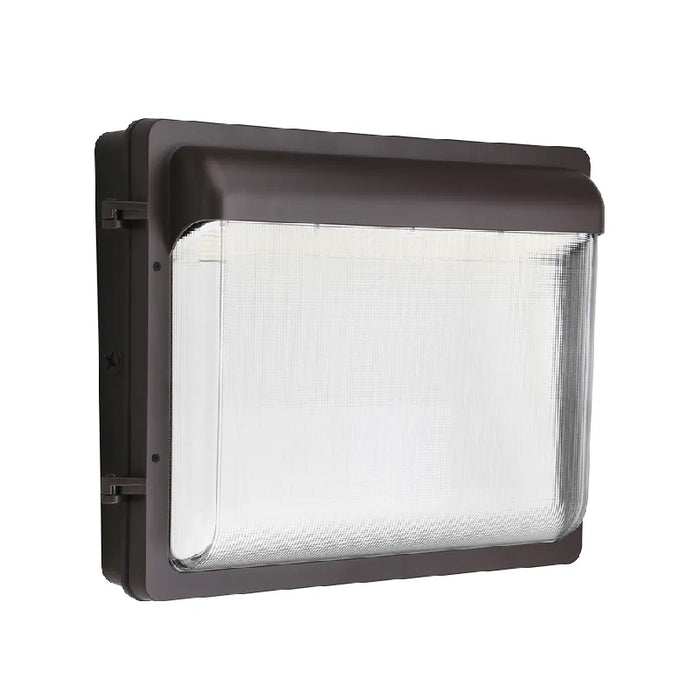

Westgate WPFX 80W/100W/120W LED Flat Wall Pack, 3CCT Selectable

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas. Great for use with motion sensors or another instant on/off controls.

Features

• Finish: Bronze
• Wattage: 80W/100W/120W
• Voltage: 120-277V
• Color Temperature: 3000K/4000K/5000K
• Lumens: 10400/13000/15600

• CRI: ≥ 80
• Dimming: 0~10V Dimmable
• Beam Angle: H127° x V85°

• Power Factor: >0.9
• THD: <20%
• Operating Temperature: -40ºF -113ºF
• Die-Cast Aluminum With Powder Coat Finish
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• DC Button Photocell with ON/OFF switch Included

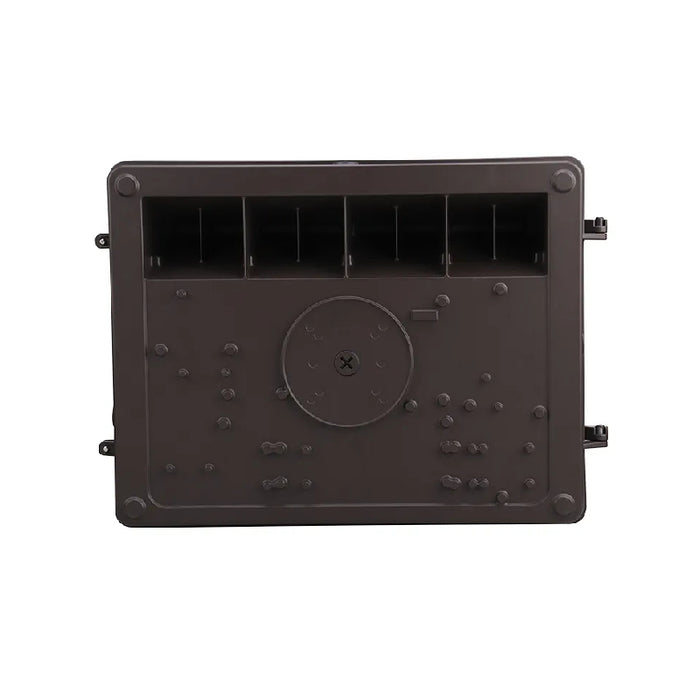

• Two 1/2" Knockouts on Each Side

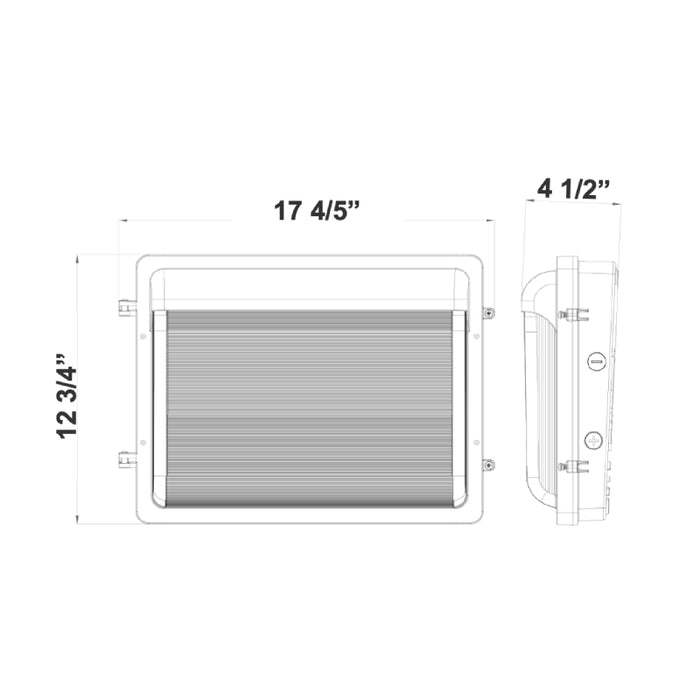

Dimension

• Width: 17.8"

• Height: 12.8"
• Depth: 4.5"
• Weight: 8.15 lbs

Estimated Life

• 70,000 Hrs

Warranty

• 7-year warranty

Documents

• Spec Sheet
