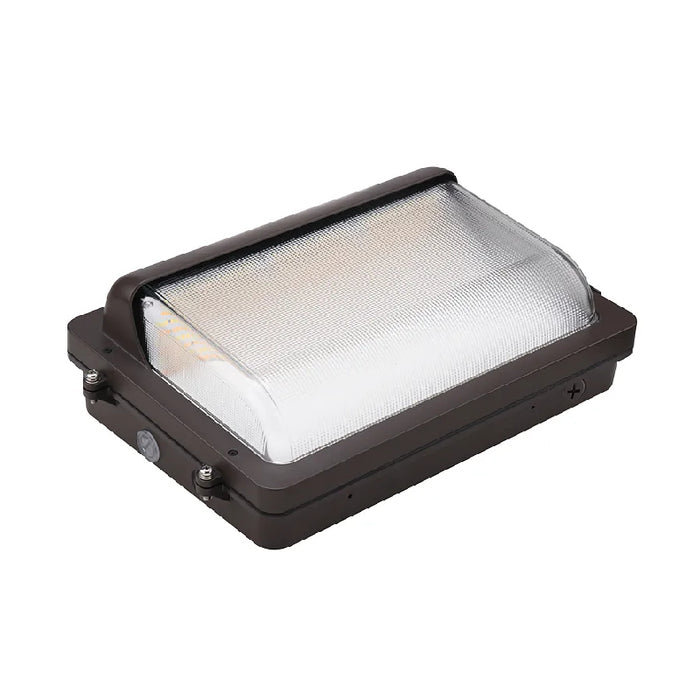

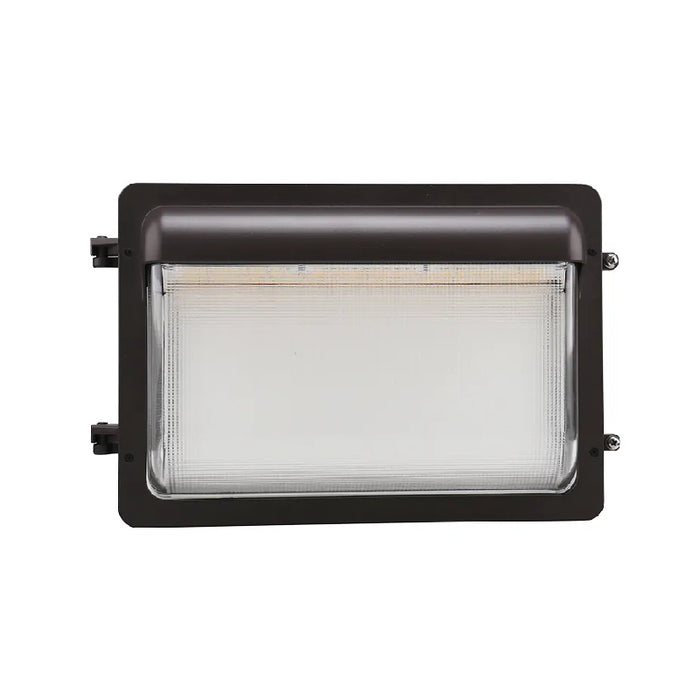

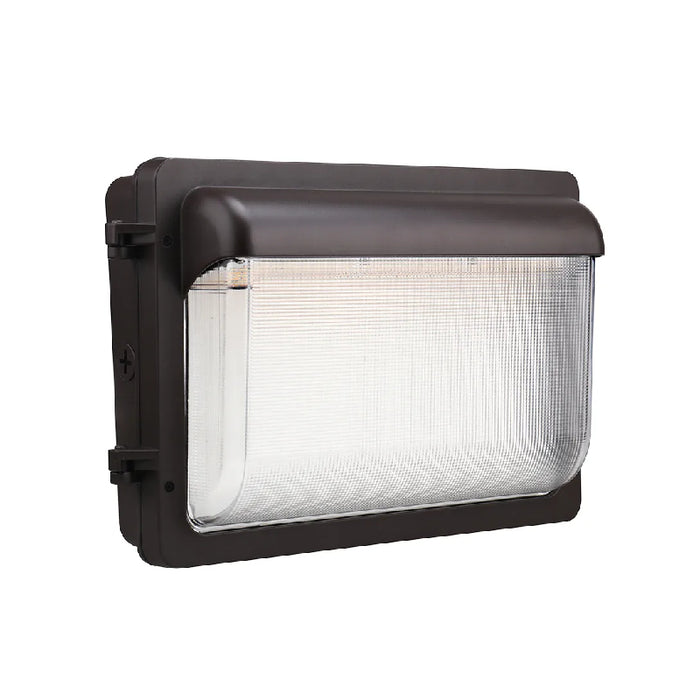

Westgate WPFX 20W/30W/40W LED Flat Wall Pack, 3CCT Selectable

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas. Great for use with motion sensors or another instant on/off controls.

Features

• Finish: Bronze
• Wattage: 20W/30W/40W
• Voltage: 120-277V
• Color Temperature: 3000K/4000K/5000K
• Lumens: 3100/3900/5200
• CRI: ≥80
• Dimming: 0-10V Dimmable

• Beam Angle: H127° x V85°
• Power Factor: >0.9
• THD: <20%
• Operating Temperature: -40ºF -113ºF
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Two 1/2" Knockouts on Each Side

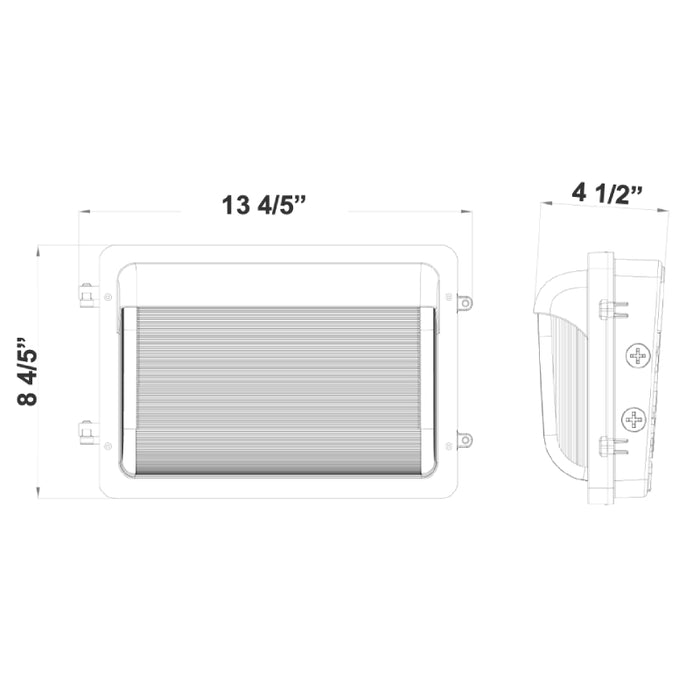

Dimensions

• Width: 13.8"

• Height: 8.8"
• Depth: 4.5"

• Weight: 7.27 lbs

Estimated Life

• 70,000 Hrs

Warranty

• 7-year warranty

Documents

• Spec Sheet
