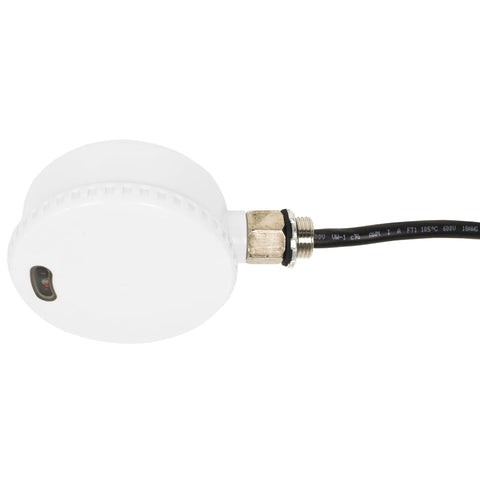

The WEC-3MR-48 an outdoor lighting fixture and provides multi-level control based on?motion and/or daylight contribution. It controls 0-10 VDC LED drivers or dimming ballasts.?All control parameters are adjustable via a wireless configuration tool capable of storing and?transmitting sensor profiles.

Features

• Power supply:?120/277VAC 50/60Hz
• HF System:?5.8GHz CW
• Dim control output:?0-10V, max. 25mA sinking current
• Detection radius/angle:?Max 26.2ft.(8m)/360°
• Remote range:?33ft. (10m) indoor, no backlight
• Time setting:?10sec.-30min. (adjustable)
• Light-control:?10-2000Lux (adjustable)

• Spec Sheet
