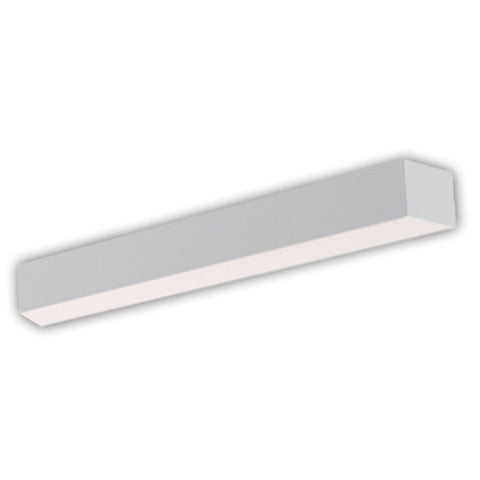

Westgate SCXT 2ft 10W/15W/20W LED Direct Linear Light, CCT, Flat Lens
Westgate | SKU#
Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.
- Wattage: 10W/15W/20W
- Voltage: 120-277 VAC
- CCT Selectable: 3000K/3500K/4000K(Selectable switch inside fixture)
- Color Temperature/Lumens:
- 3000K/1100 lm
- 3500K/1650 lm
- 4000K/2200 lm
- CRI: ??0
- Beam Angle: 104.8°(H) x 100.5°(V)
- Dimming: 0~10V Dimmable
- Lens Type: Opal Polycarbonate Lens
- Low Profile Modern Design
- Aluminum housing with matte white finish
- Lens Snaps into Housing
- Mounting Options: Surface, Suspended, Recessed
- Each Fixture Comes With a 6-1/2??Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
- External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures
- Do not exceed the maximum wattage of the driver
- Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions

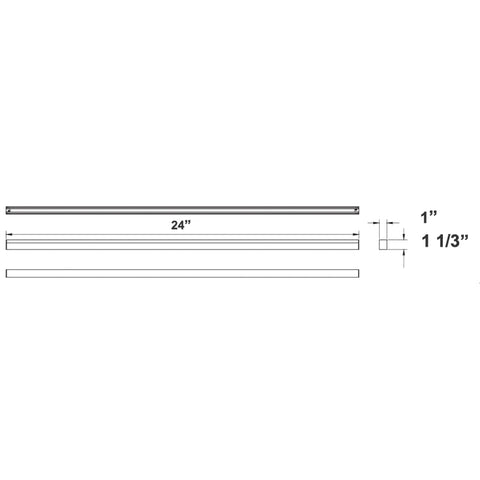

- Length: 24"
- Width: 1"
- Height: 1.3"
- Product Weight:?1.1 lbs
