Westgate ELB-1548-HH 15W Split Heat Tolerant Emergency Battery Backup

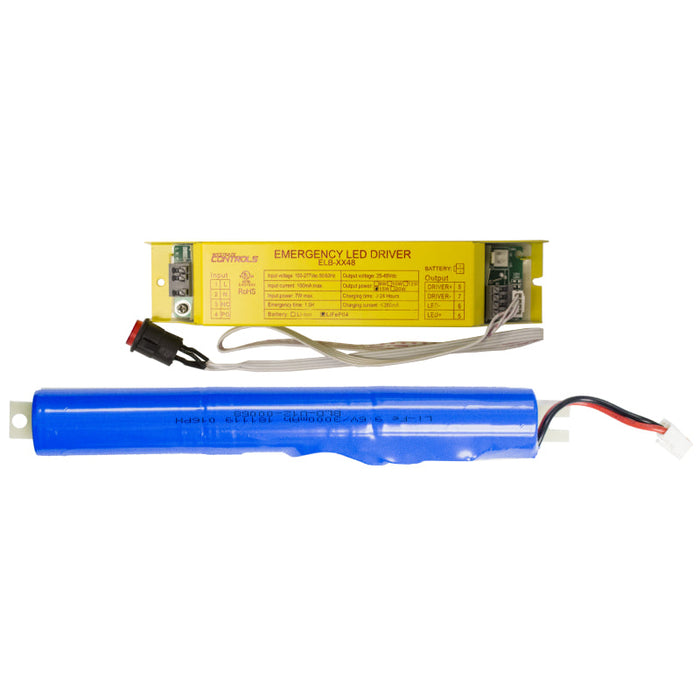

ELB-1548-HH is a CEC-Compliant, UL-Listed and approved for field installation emergency lighting system for fixtures with Isolated drivers. For use with LED modules driven by a constant current source. The LiFeP04 battery?™s high heat tolerance makes this unit suitable for installation in enclosed fixtures. The complete split system includes the EM driver, battery charger, battery, test switch with integrated indicator light.

Features

• Output Power: 15W Max
• Output?Voltage: 25-48V
• Input Voltage: 100-277VAC
• AC Input Power: 7W max
• Battery:?LiFeP04 (Lithium Iron Phosphate), 9.6V / 3000mAh
• Test Switch w/ Integrated Indicator Light

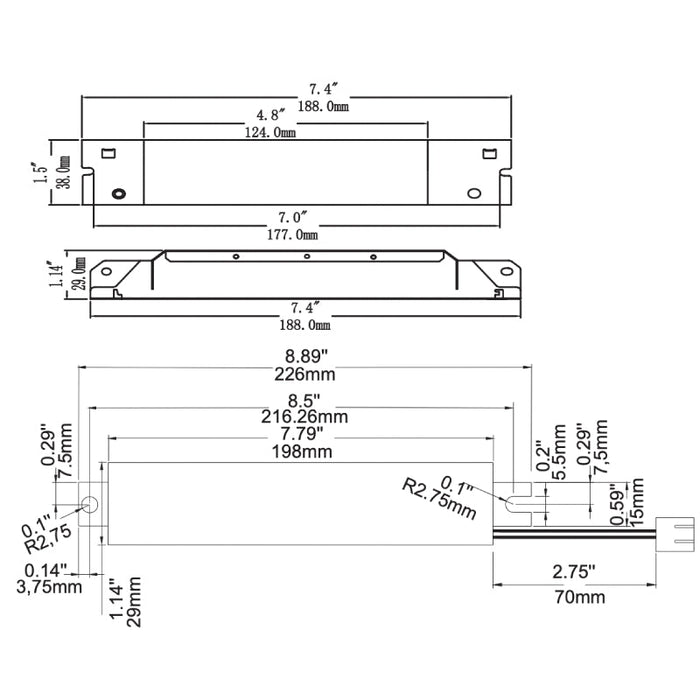

Dimension

• Case: 7.4''x1.5''x1.1''(mounting center-7.0")
• Battery: 8.89"x1.14''(mounting center-8.5'')

Document

• Spec Sheet
