Westgate ELB-1048-HH 10W Split Heat Tolerant Emergency Battery Backup
Westgate | SKU#

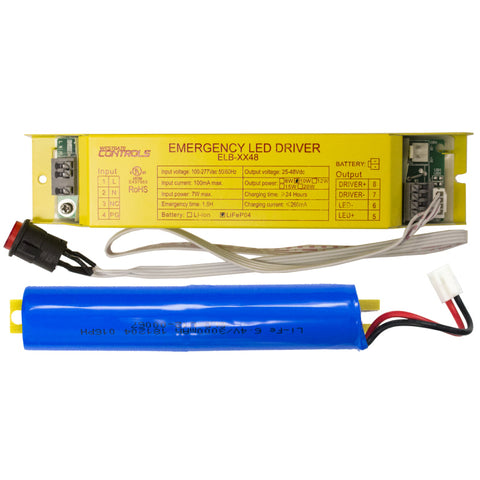

ELB-1048-HH is a CEC-Compliant, UL-Listed and approved for field installation emergency lighting system for fixtures with Isolated drivers. For use with LED modules driven by a constant current source. The LiFeP04 battery?™s high heat tolerance makes this unit suitable for installation in enclosed fixtures. The complete split system includes the EM driver, battery charger, battery, test switch with integrated indicator light.
Features
- Output Power: 10W Max
- Output?Voltage: 25-48V
- Input Voltage: 100-277VAC
- AC Input Power: 7W max
- Battery:?LiFeP04 (Lithium Iron Phosphate), 6.4V / 3000mAh
- Test Switch w/ Integrated Indicator Light

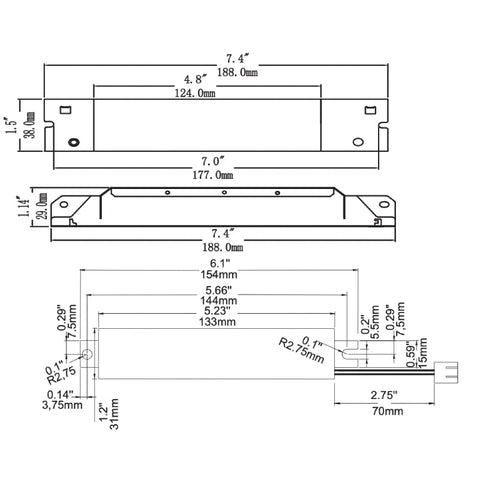

Dimension
- Case: 7.4''x1.5''x1.1''(mounting center-7.0")
- Battery: 6.1"x1.2''(mounting center-5.66'')
