Westgate ELB-0460-FM 4W Integrated LED Emergency Battery Backup
Westgate | SKU#
ELB-0460-FM is a CEC-Compliant, UL-Listed and approved for field installation emergency lighting system for fixtures with Isolated drivers. For use with LED modules driven by a constant current source. With the battery, driver, and charger all integrated in a mini housing, it is a perfect choice for installation inside small light fixtures up to 40W.
Features
- Output Power: 4W
- Output?Voltage: 10-60V
- Input Voltage: 100-277VAC
- AC Input Power: 5W max
- Battery:?Li-ion (Lithium-ion), 3.7V / 2500mAh
- Test Switch w/ Integrated Indicator Light

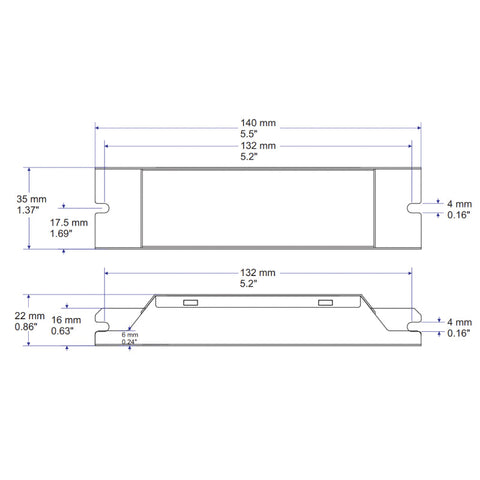

Dimension
- Case: 5.5''x1.37''x0.86''
