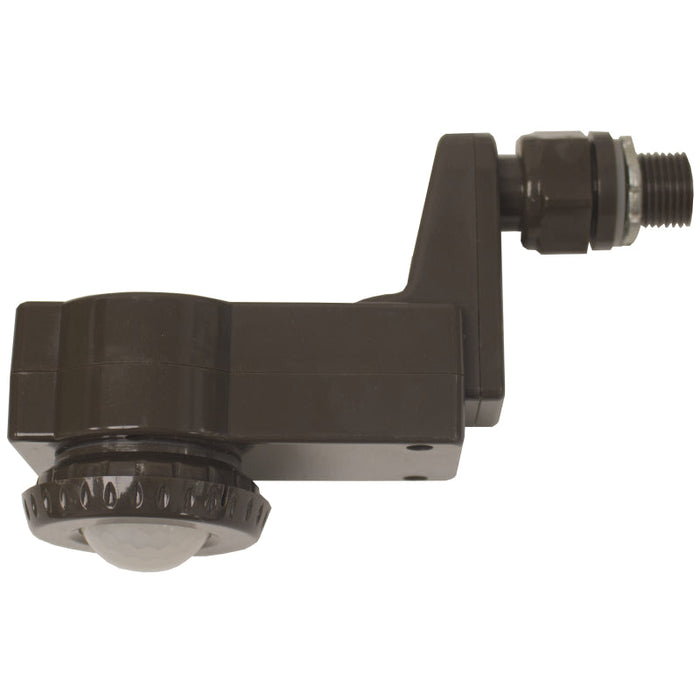

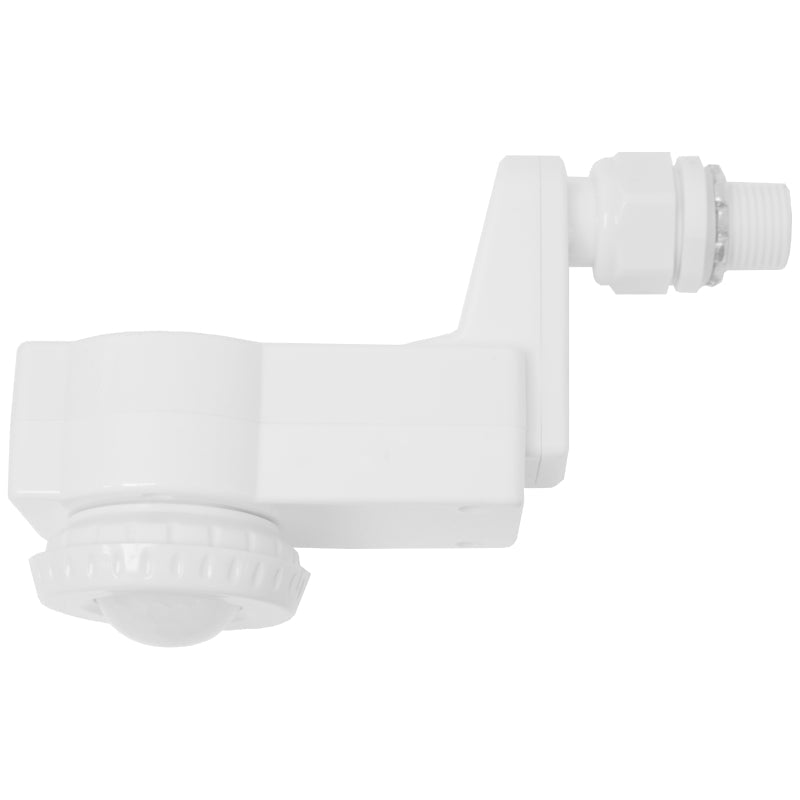

WEC-3PDR-58 0-10V PIR IP65 120-277V Sensor

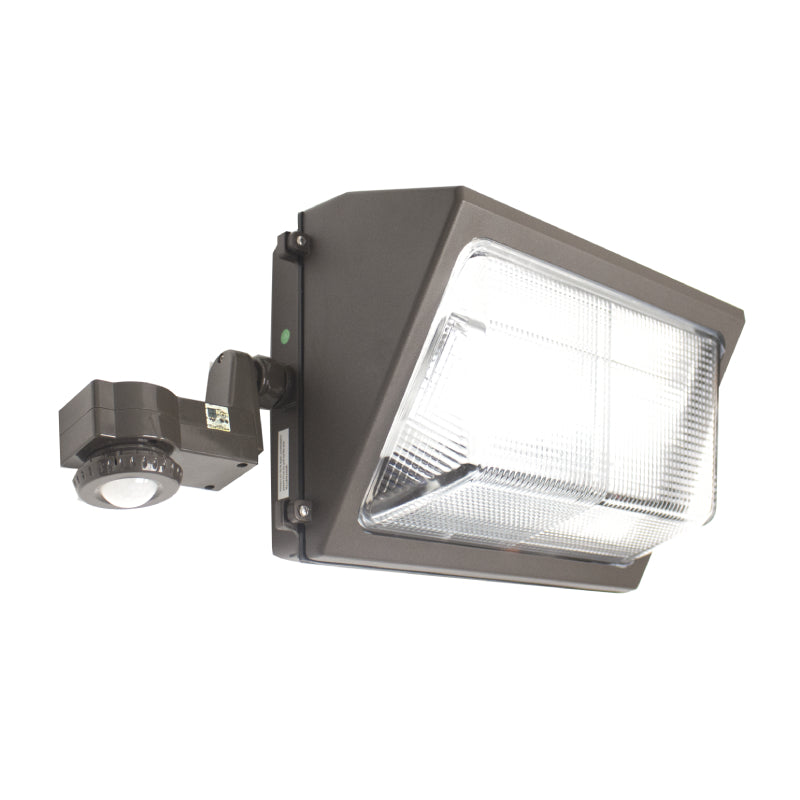

The product mounts is an outdoor lighting fixture and provides multi-level control based on?motion and/or daylight contribution. It controls 0-10 V DC LED drivers or dimming ballasts as well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and cold locations.?All control parameters are adjustable via a wireless configuration tool capable of storing and?transmitting sensor profiles.

Features

• Finish; Bronze, White
• 120/277 VAC, 50/60Hz
• Detect Area: 360°, maximum coverage 60??diameter from 40??height
• High mode: 0-10 V; default 10 V
• Low mode: Off, 0-9.8 V; default 1 V
• Operating temperature: -40-158°F (-40-70°C)
• Operating Humidity: 20-90%

• Spec Sheet
