WEC-3PDR-52 0-10V PIR 120-277V Sensor

Original price $29.97 - Original price $29.97
Original price
$29.97 - $29.97
Current price $29.97
in stock, ready to be shipped

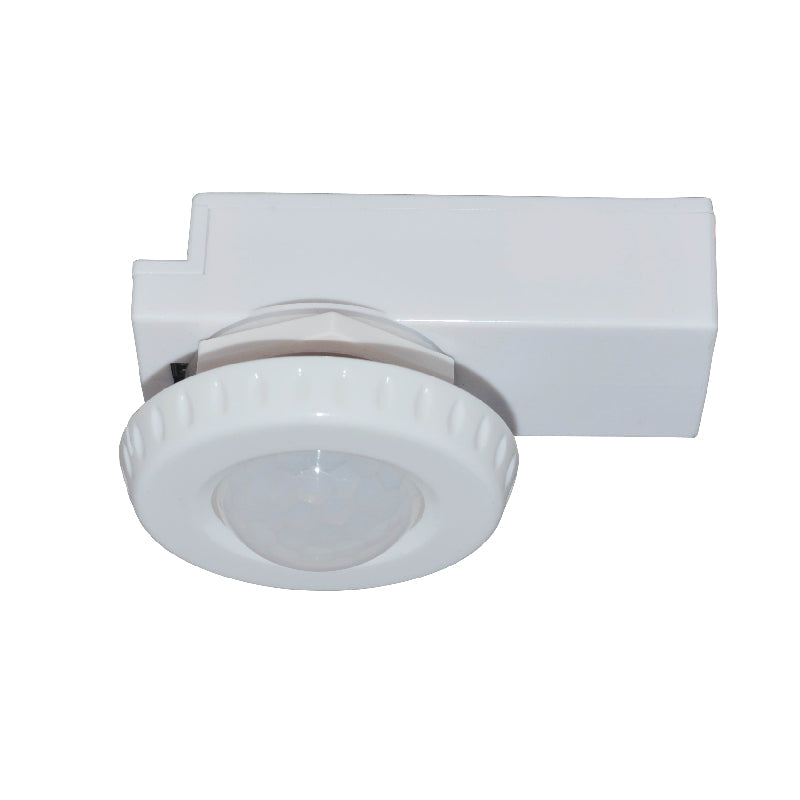

The WEC-3PDR-52 mounts in an outdoor lighting fixture and provides multi-level control based on motion and/or daylight contribution.? It controls 0-10 VDC LED drivers or dimming ballasts, as?well as non-dimming ballasts and, with an Fresnel Lens, is rated for wet and cold locations. All?controlparameters are adjustable via a wireless configuration tool capable of storing and?transmitting sensor profiles.


  • Power sup ply:?120/277VAC 50/60Hz
  • Resistive/Halogen - 800W/1200W@120/277V
  • Fluorescent Ballast - 660W/1200W@120/277V
  • Electronic Ballast (LED/CFL) - 5A/5A@120/277V
  • Detect Area: 360°, maximum coverage 60??diameter from 40??height
