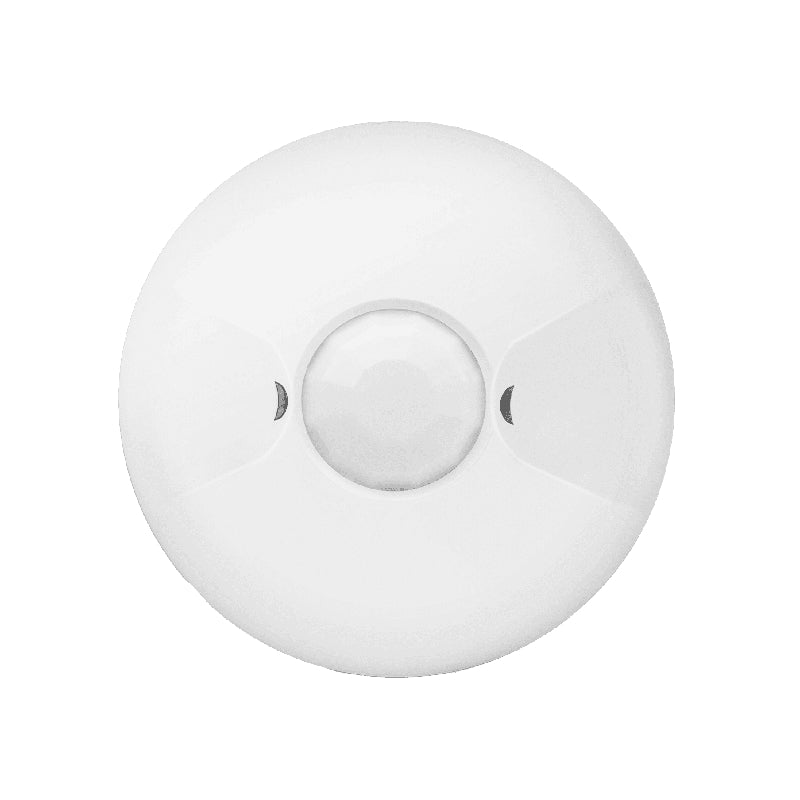

Enerlites MPC-50VD 360° Line Voltage PIR Occupancy Ceiling Sensor with 0-10V Dimming
SKU MPC-50VD-W
Original price
$52.95
-
Original price
$52.95
Original price
$52.95
$52.95
-
$52.95
Current price
$52.95
Availability:
In stock
The ENERLITES MPC-50VD is a commercial grade line voltage ceiling mount sensor that operates lights using passive infrared (PIR) technology and 0-10V dimming.
Features
- Color: White
- Max Amperage: 10A
- Voltage: 120/277V
- Electronic Ballast/LED: 800VA-120VAC / 1385VA-277VAC
- Load Rating: 2mA - 50mA
- Motor: 1/4 HP
- Coverage: 1200 sq. ft.
- 360° field of view
- Dimmable 0-10V bi-level to 50 percent compliant with CA Title 24
- Four occupancy logic options give users the ability to customize control to meet application needs
- Time Delay is adjustable from 15 seconds to 30 minutes
- Adjustable PIR sensitivity setting
- Adjustable ambient light level to keep load off
- LED indicator light flashes when sensor detects motion to verify detection is active
- Zero-crossing for long relay life
- Sensor coverage tested to NEMA WD7-2000
Warranty?
- 2-year warranty?
