50W Magnetic Lighting Transformer -24V

Magnitude | SKU#
  • $61.60

Maximam Load 50W
Input Voltage 120V
Input Current Full Load 410 mA
Output Voltage 24V
Length (inch) 6.55
Width (inch) 2.25
Height (inch) 2.55

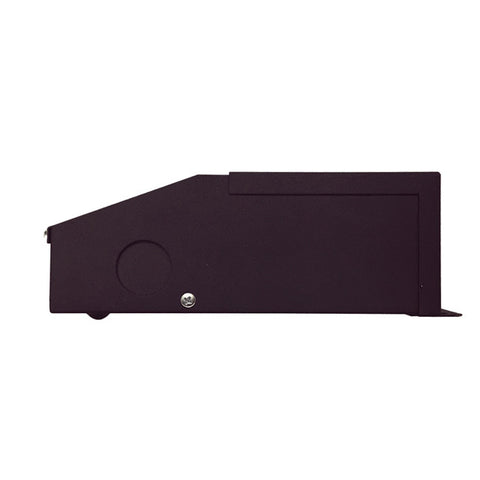

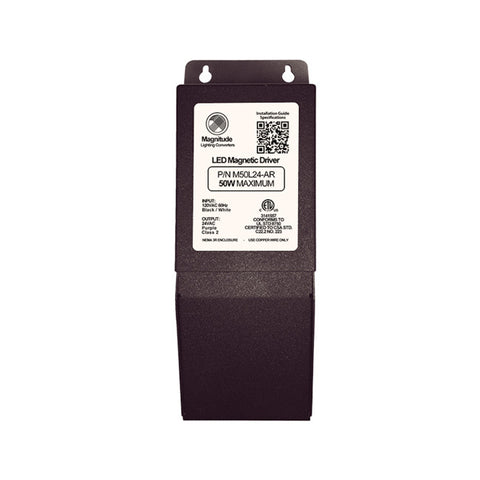

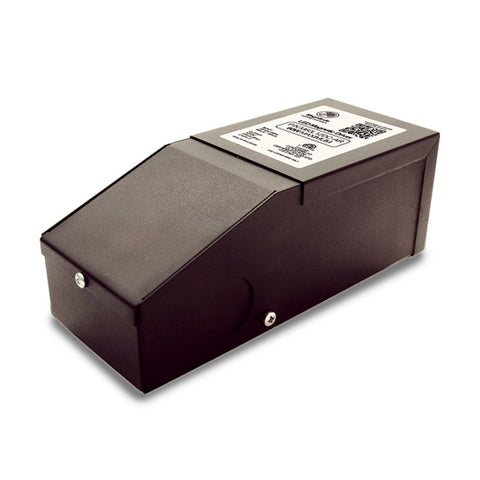

This is the most compact lighting transformer on the market with a magnetic transformer core. It is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and transformer. The transformer is encased in a coated metal box that includes 2 knock-outs, one on each side, to enable easy installation that complies with electrical code requirements.

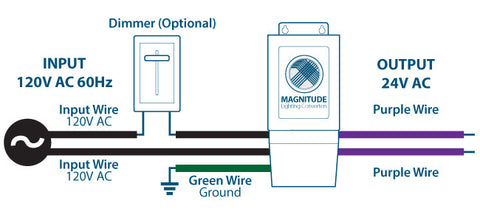

  • Dimmable with any standard MLV TRIAC dimmer
  • Two auto-reset circuit breakers
  • Class 2
  • Commercial and Residential Use
  • Nema 3R enclosure
  • Wiring compartment with 2 knock-outs for clean and easy installation
