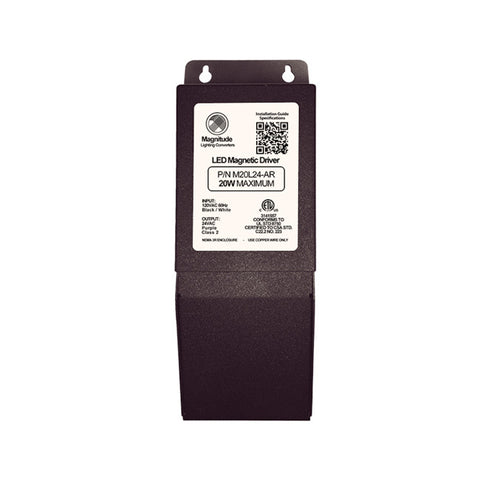

20W Magnetic Lighting Transformer -24V
Magnitude | SKU#
| Specifications | |
|---|---|
| Maximam Load | 20W |
| Input Voltage | 120V |
| Input Current Full Load | 195 mA |
| Output Voltage | 24V |
| Length (inch) | 5.6 |
| Width (inch) | 2 |
| Height (inch) | 2.14 |
Overview

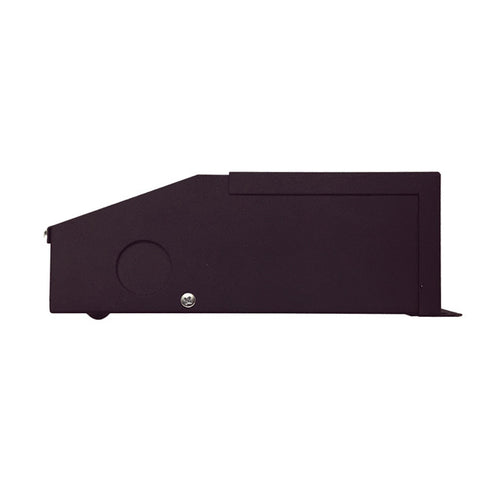

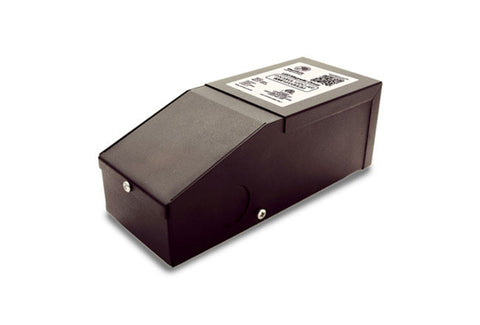

This is the most compact lighting transformer on the market with a magnetic transformer core. It is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and transformer. The transformer is encased in a coated metal box that includes 2 knock-outs, one on each side, to enable easy installation that complies with electrical code requirements.
- Dimmable with any standard MLV TRIAC dimmer
- Two auto-reset circuit breakers
- Class 2
- Commercial and Residential Use
- Nema 3R enclosure
- Wiring compartment with 2 knock-outs for clean and easy installation
