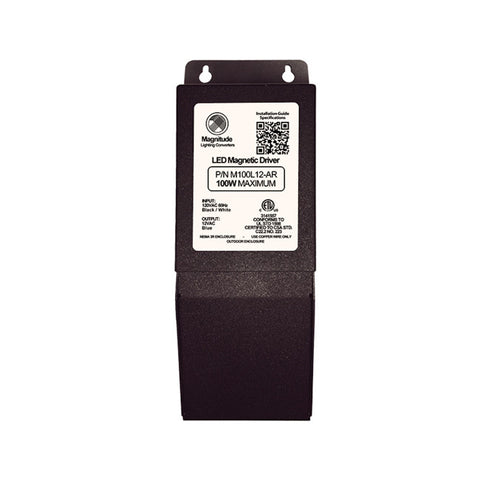

100W Magnetic Lighting Transformer -12V

Magnitude | SKU#
  • $73.60


Usually ships within 1-2 working days. Lighting items ship within 3-5 working days.
Specifications
Maximam Load 100W
Input Voltage 120V
Input Current Full Load 838 mA
Output Voltage 12.5V
Length (inch) 6.55
Width (inch) 2.25
Height (inch) 2.55

Overview

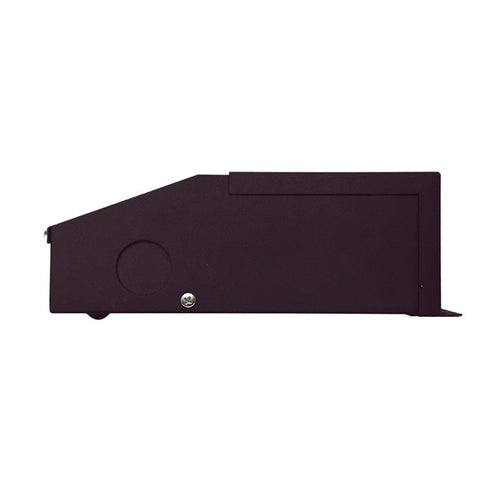

This is the most compact lighting transformer on the market with a magnetic transformer core. It is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and transformer. The transformer is encased in a coated metal box that includes 2 knock-outs, one on each side, to enable easy installation that complies with electrical code requirements.

  • Dimmable with any standard MLV TRIAC dimmer
  • Two auto-reset circuit breakers
  • Nema 3R enclosure
  • Commercial and Residential Use
  • Wiring compartment with 2 knock-outs for clean and easy installation
