G2E DUO FPBL-T 2X2 20W/25W/30W LED Back-Lit Flat Panel, 3CCT Selectable, Up to 3868 lm, 0-10 Dimming, 120-277V

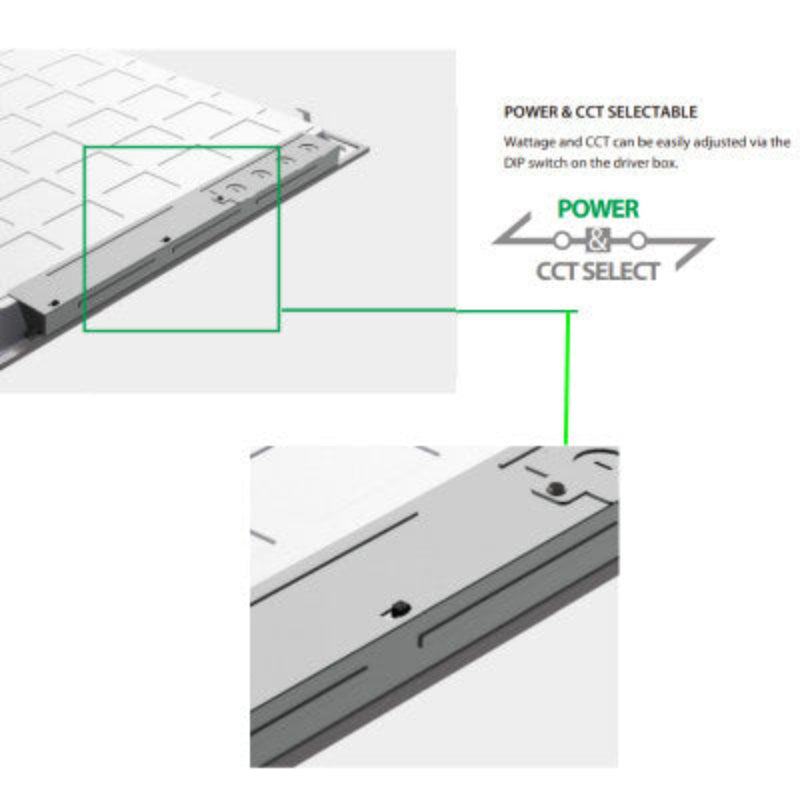

The Selectable Panel provides a low profile, low glare, uniform source ambient lighting fixtures. It includes two DIP switches to easily and reliably adjust CCT and lumens, making it a one fits all solution for indoor commercial lighting applications including but not limited to offices, retail space and showrooms.

Features

• Wattage: 20W/25W/30W Selectable
• Voltage: 120-277V
• Color Temperature: 3500K / 4000K / 5000K Selectable
• Lumens: up to 3868
• CRI: 80+
• Control: 0-10V Dimming Standard
• Housing: UV resistant, Aluminum Frame, Galvanized Steel Driver Compartment
• Lens : PMMA lens, PS diffuser
• UL 1598 suitable for damp locations, Type IC

• With Slim J-Box & 12VDC AUX

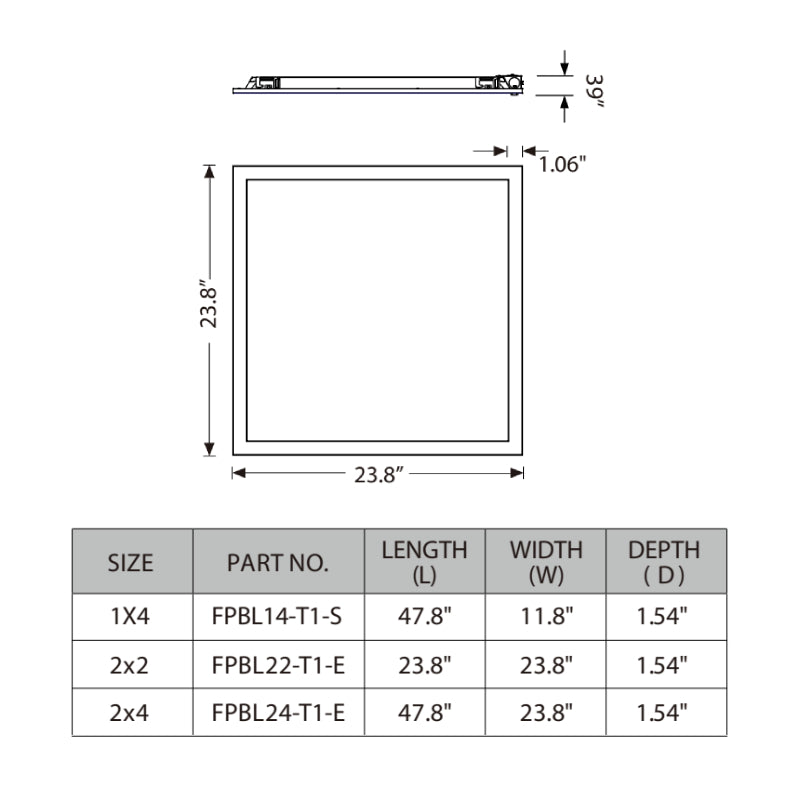

Dimensions

• Length: 23.8"
• Width: 23.8"

• Height: 1.54"


Estimated Life

• Calculated L70>100,000 hours

Warranty

• 5-Year

Documents

• Spec Sheet
• Instruction Sheet
