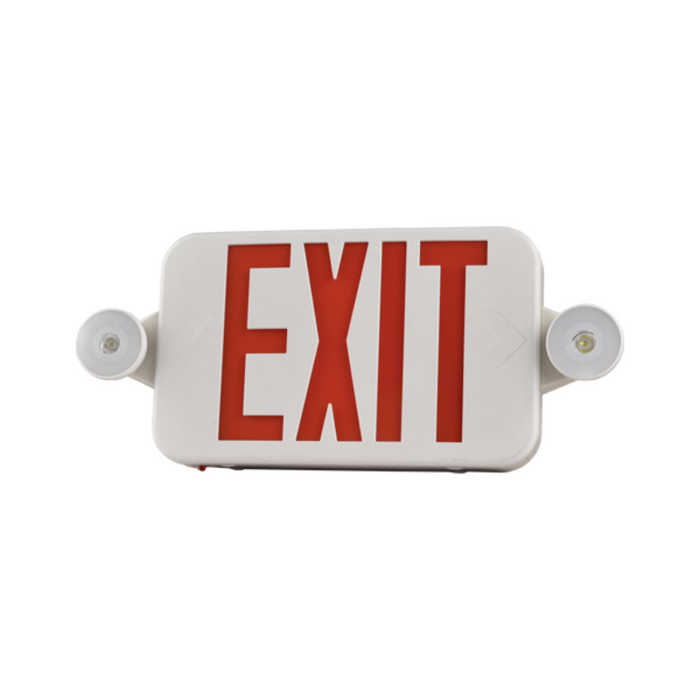

PT-EXL-C-R Series Slim Round Bi-Color LED Exit Sign & Emergency Light Combo

The PT-EXL-C-R Series is the category leader in emergency lighting featuring adjustable, dual head lights, 90-minute power outage uptime, backlit red chevrons (single or double), and a universally mountable polycarbonate housing.

Features

• Finish: White
• Letter Color: Red/Green
• Housing: ABS
• Wattage: 2W
• Voltage: 120-277V
• Lumens: 200
• Battery Type: 3.6V 1000mAh Ni-MH
• EM Run Time: 90 mins
• Charging Time: 24 hrs

• Single or double face
• Field adjustable for single or dual face in red or green color inserts
• The universal J-Box mounting pattern supports quick installation time. Mount directly on a wall or ceiling.

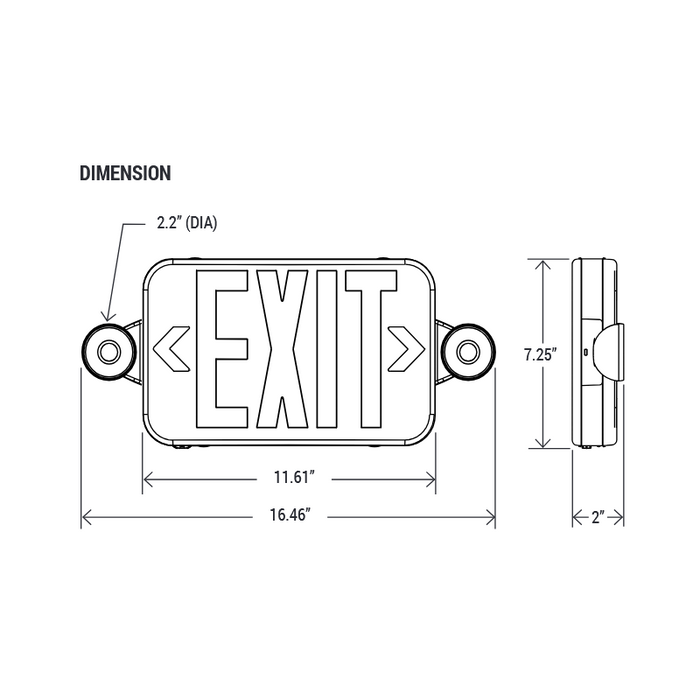

Dimensions

• Length: 16.46"
• Width: 7.25"

• Height: 2"


Warranty

• 5-year limited warranty on electrical parts and housing

• 3-year limited warranty on battery

Documents

• Spec Sheet
• Instruction Sheet
